These Unit are exchangeunit. It means you must return your old unit. !

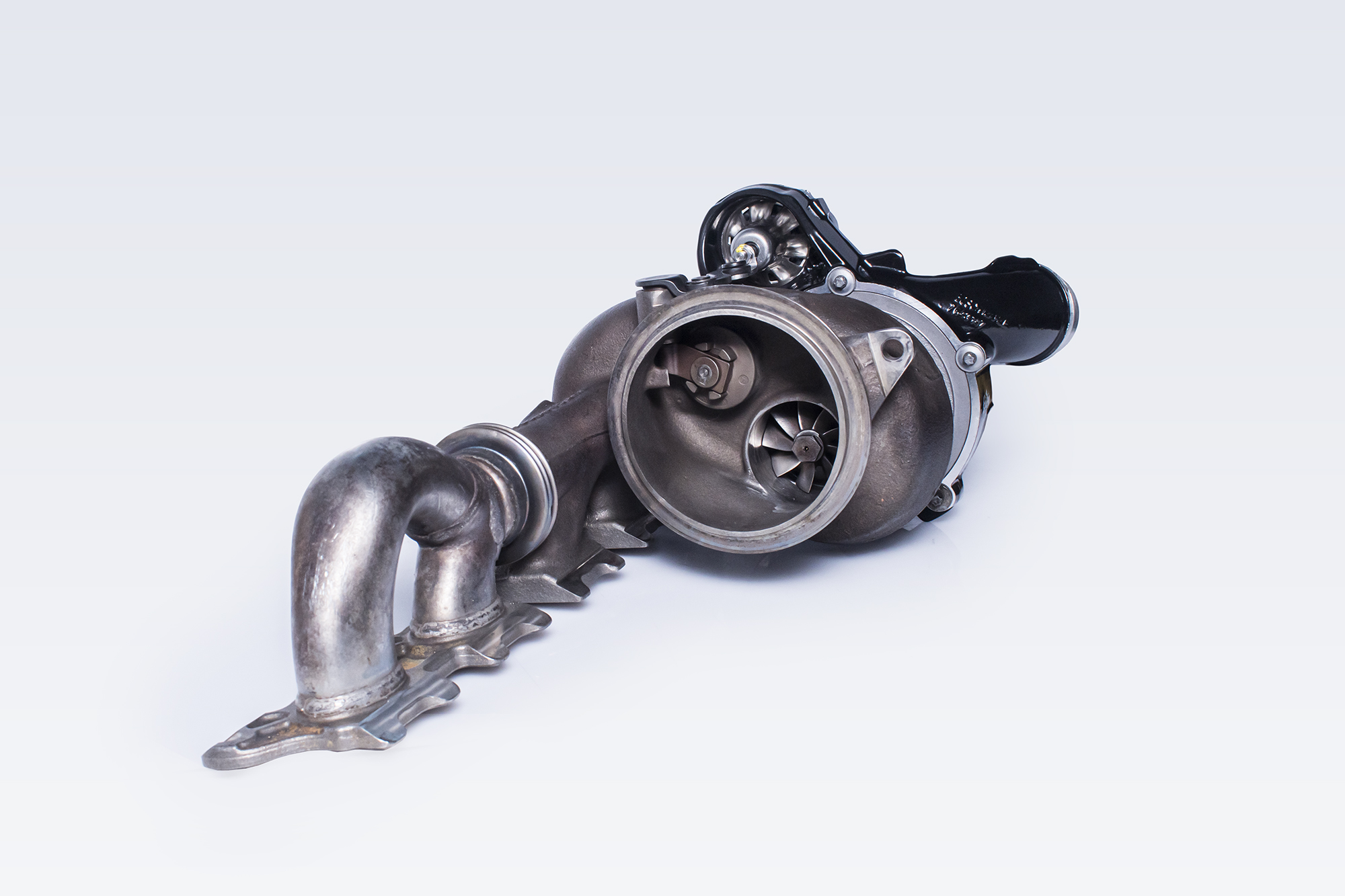

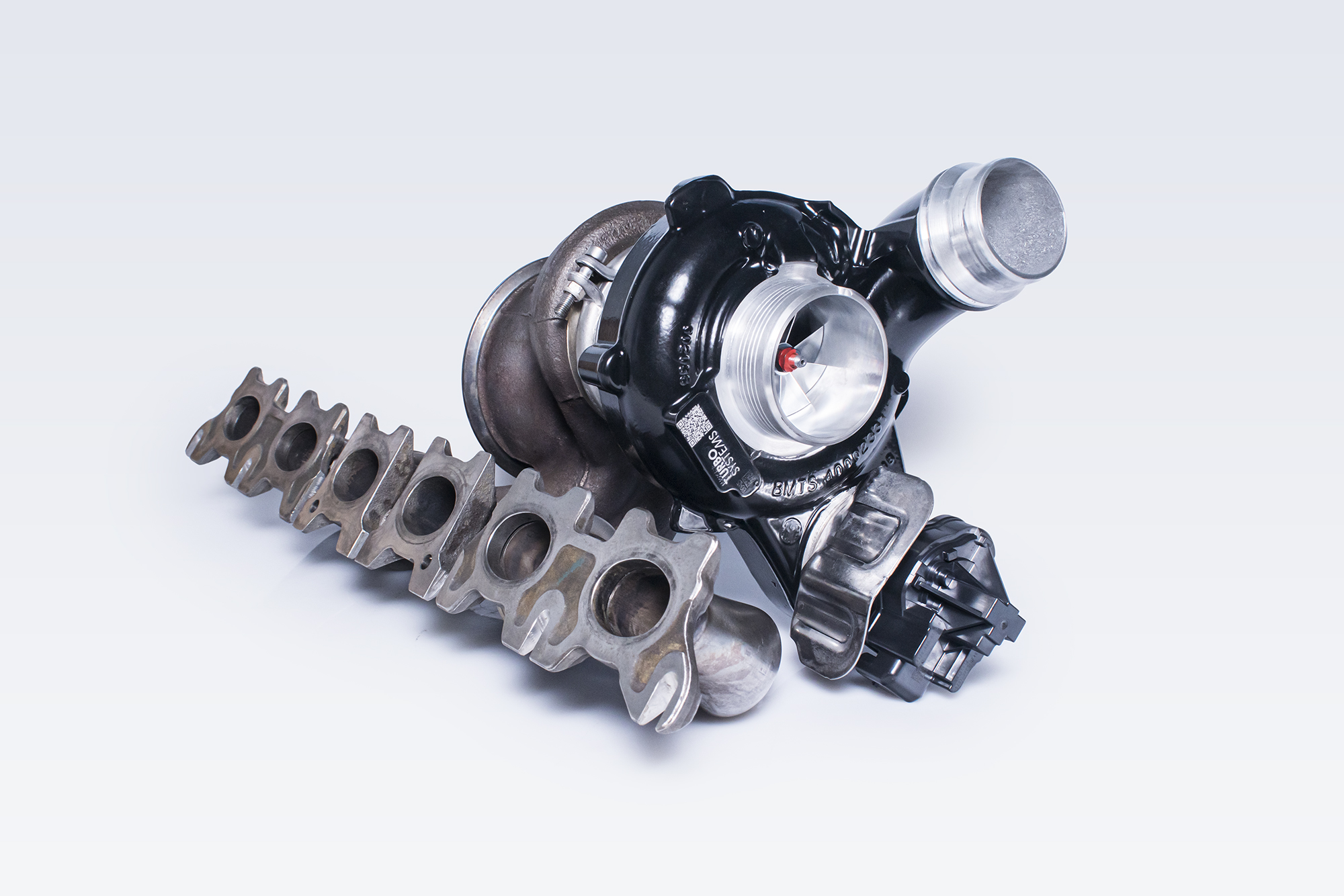

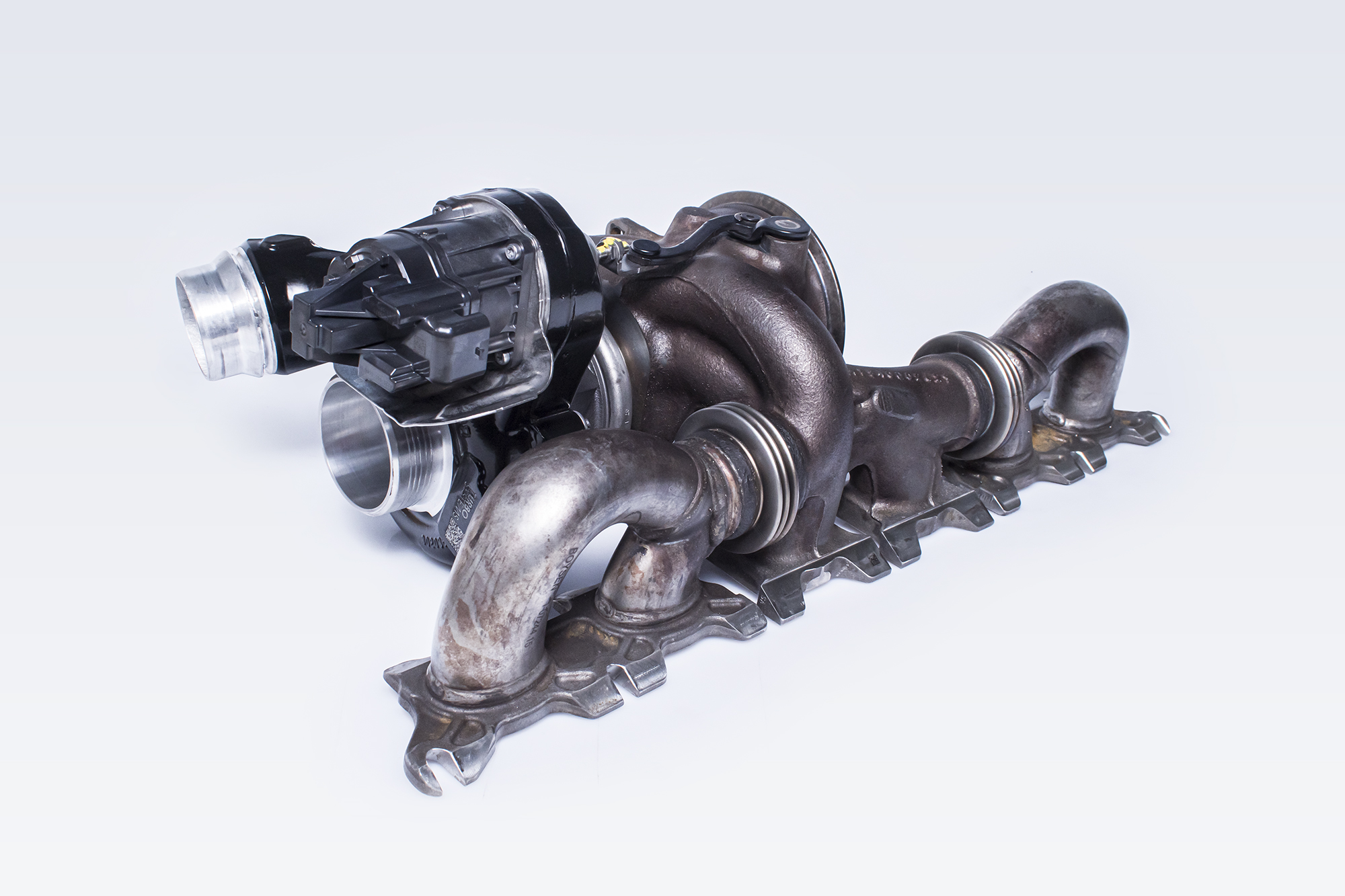

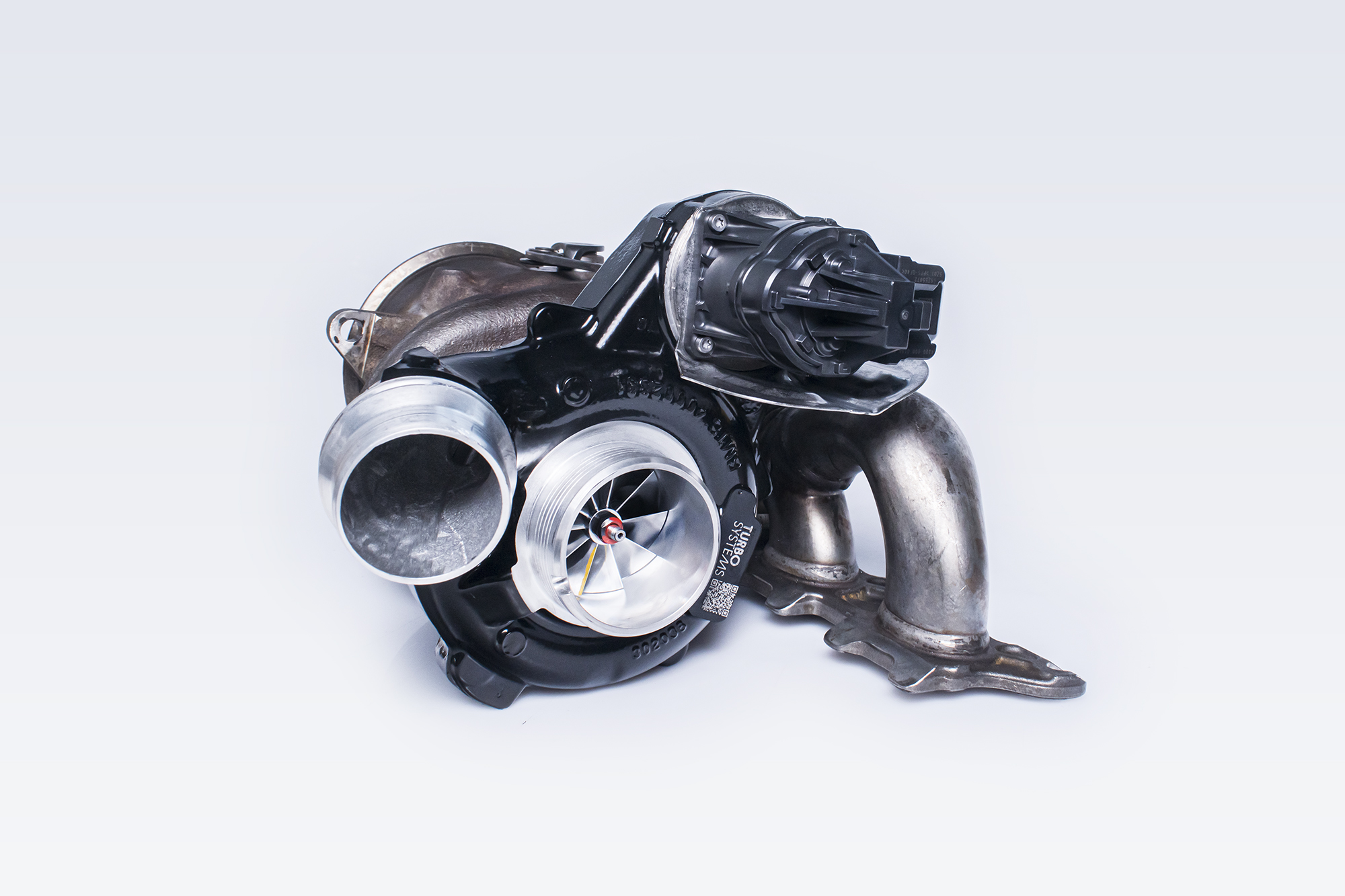

Bolt-on hybrid turbocharger for BMW with B58B30 engine designed to work with stock exhaust manifold and other engine units. Compatibility list written below.
Turbosystems upgrade turbocharger for BMW B58B30 features:
Stage 1 / 2 / 2+: reinforced thrust bearing, Stage 3: dual ceramic ball bearing
enlarged machined from the solid compressor wheels;
enlarged turbine wheels;
machined enlarged housings;
new shafts;
balanced on VSR;
Power range:
Stage 1 – 550+ HP;
Stage 2 – 600+ HP;
Stage 2+ – 650+ HP;
Stage 3 – 700+ HP;

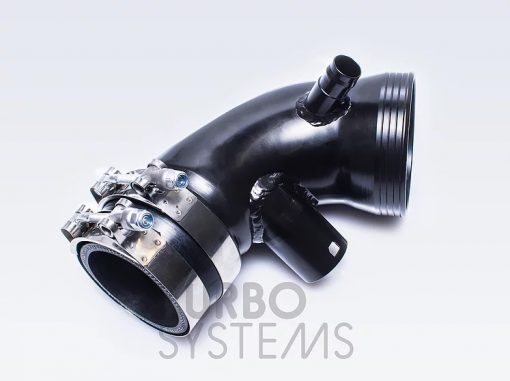

INSTALLATION NOTE: stage 2 /2+ /3 requires an aftermarket intake pipe, which can be added as an option with this turbocharger. If you buy an intake pipe from another manufacturer remember to remove the o-ring, otherwise it can be sucked inside and make severe damage to the turbocharger.
Compatible with
Model Year Engine code Power (KW / HP) P. N. OEM nr.
BMW 340 i (F30/F31) from 2015 B58B30 240 / 326 11658637041
7643147 11652397070
BMW 340 i GT (F34) from 2016 B58B30 240 / 326 11658637041
7643147 11652397070
BMW 440 i (F32/F33) from 2016 B58B30 240 / 326 11658637041
7643147 11652397070
BMW 440 i GT (F36) from 2016 B58B30 240 / 326 11658637041
7643147 11652397070
BMW 540 i (G30) from 2017 B58B30 250 / 340 11658637041
7643147 11652397070
BMW 740 i (G11/G12) from 2015 B58B30 240 / 326 11658637041
7643147 11652397070
BMW M140 i (F20/F21) from 2016 B58B30 250 / 340 11658637041
7643147 11652397070
BMW M240 i (F22/F23) from 2016 B58B30 250 / 340 11658637041
7643147 11652397070
