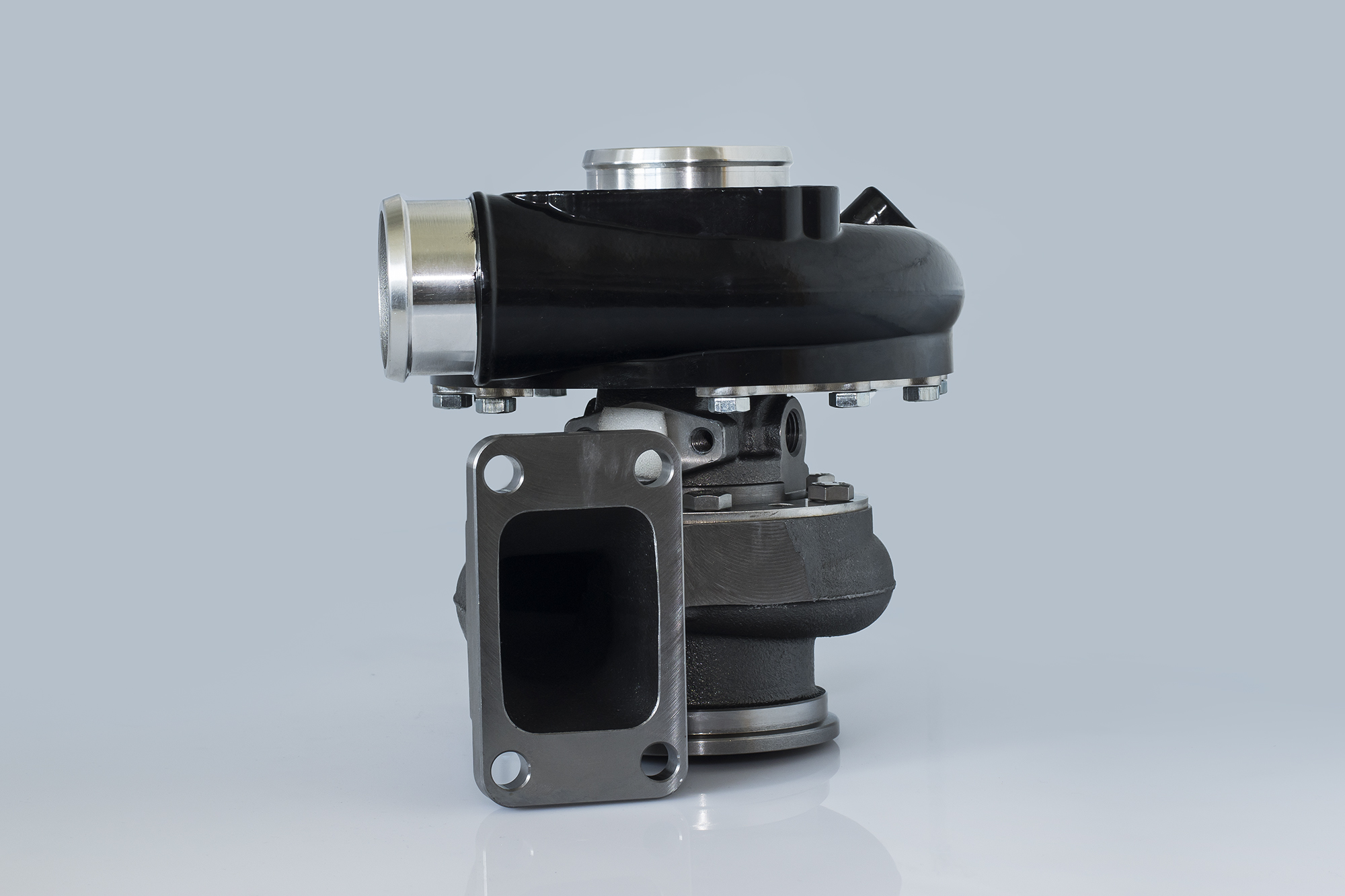

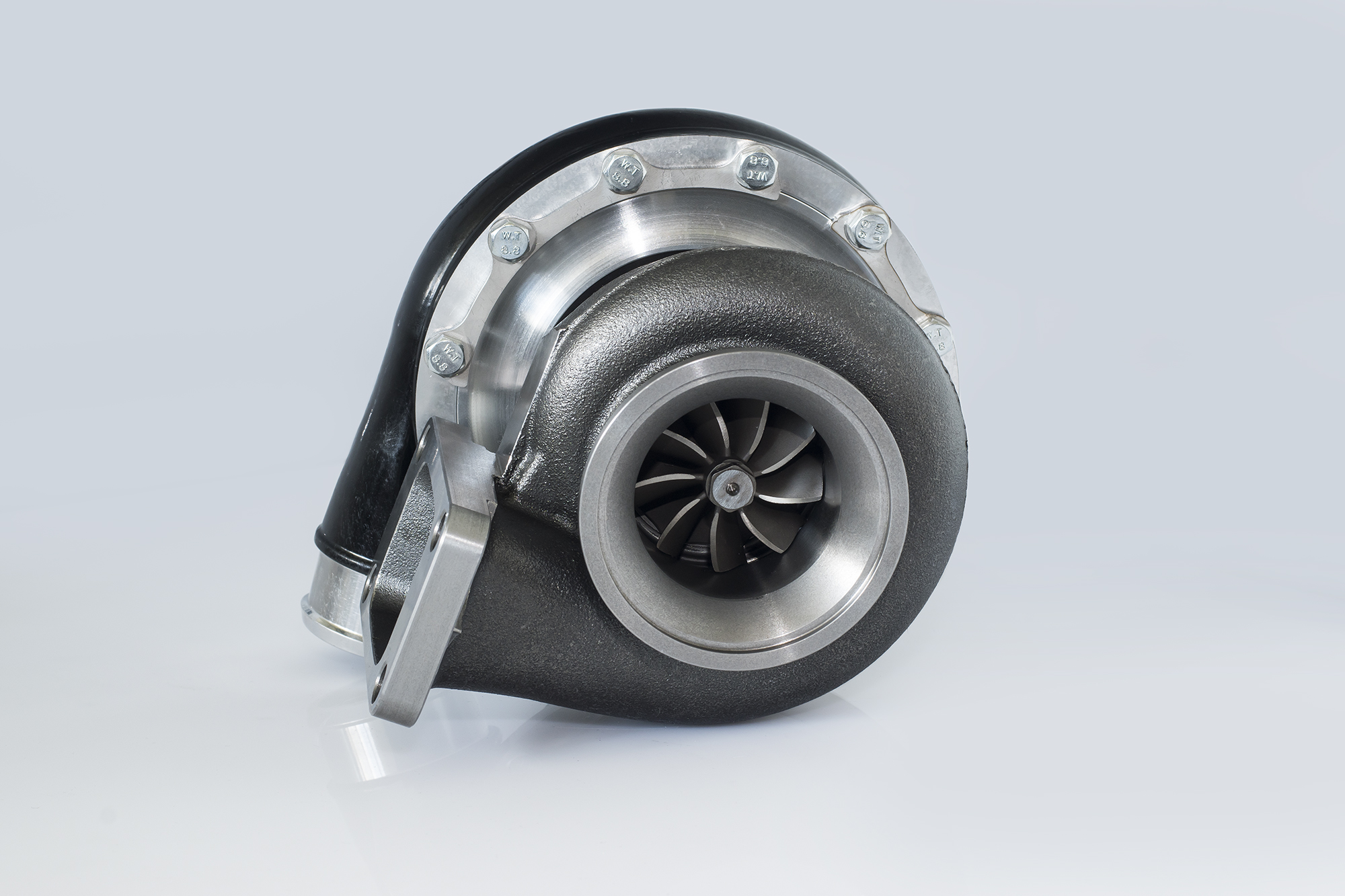

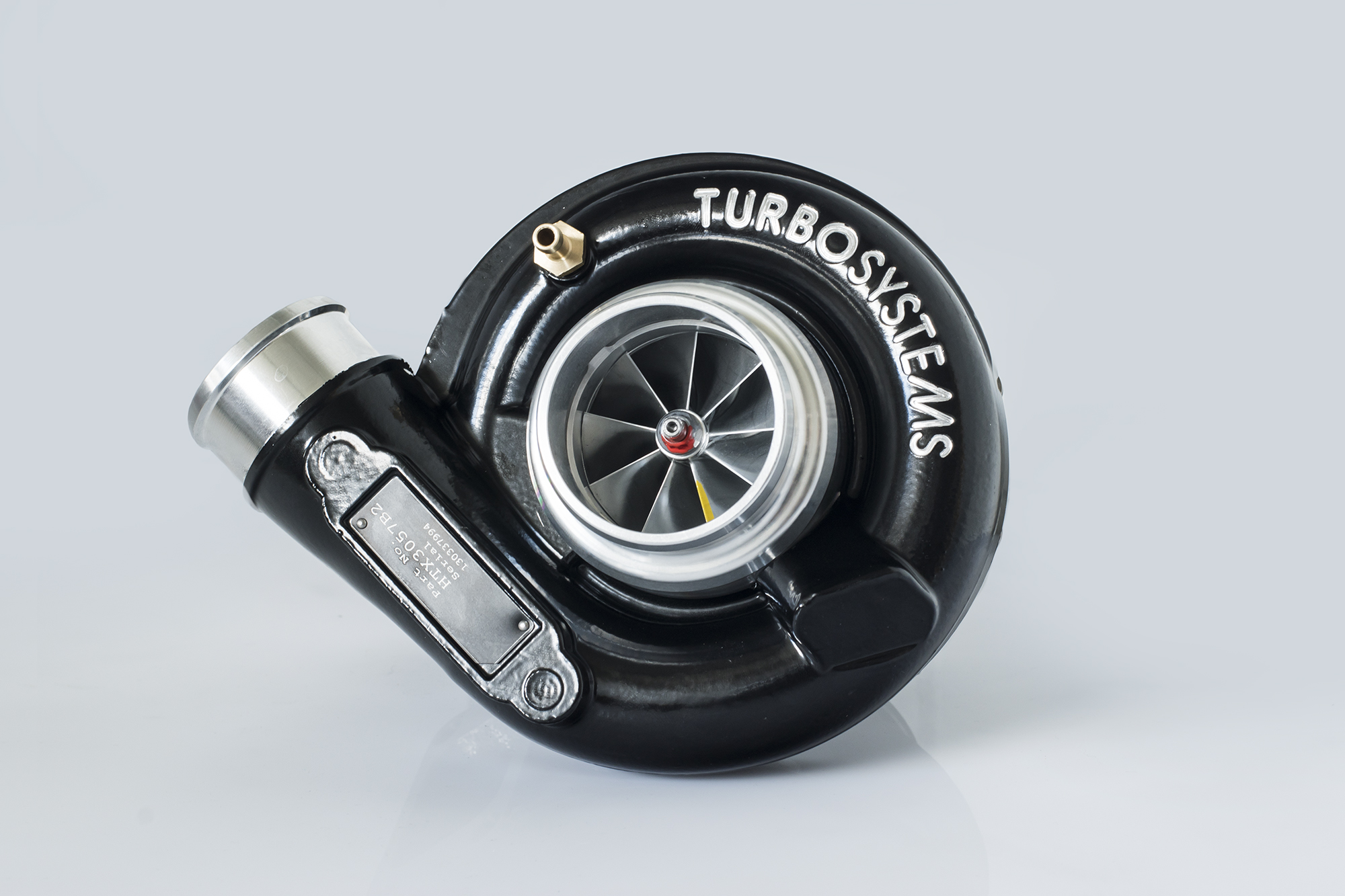

HTS3057B2 universal turbocharger 300-450 HP

Power range: 300-450 HP Core: dual ceramic ball bearing HTS version created for lower boosts and quicker spool. Recommended boost up to 1.5 – 1.7bar. High performance turbocharger designed for heavy loads and high temperature. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use. Basic information Cooling: Water cooled bearing housing with 2 M14x1.5 ports Bearings: Dual ceramic ball bearings Compressor air Intake diameter: 63mm (2,5″) Compressor air Outlet diameter: 51mm (2″) Flange: T3 Exhaust connection: 3″ V-band clamp Ported shroud compressor housing AN4 oil inlet with integrated oil restrictor Compressor side Compressor wheel: 6+6 blades machined from the solid billet Inducer: 57mm Exducer: 71mm Turbine side Housing: 10cm2 / AR: 0.73 Turbine wheel: 9 blades Inducer: 60mm Exducer: 55mm
