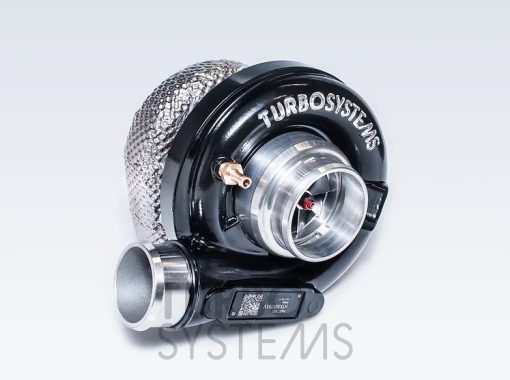

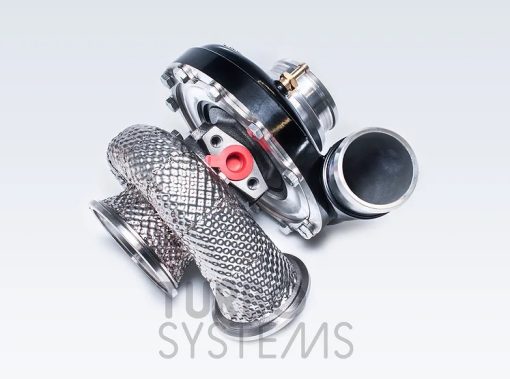

HTX3057B1V universal turbocharger 400-500 HP

Same specifications as HTX3057B2 only turbine flange is replaced with 3″ V-band connection. Turbine housing wrapped with a heat shield. High performance turbocharger designed for heavy loads and high temperature. Two compressor side air outlet choices – 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use. This turbocharger comes with 2 V-band sets (for turbine flange and exhaust). Basic information Cooling: Water cooled bearing housing with 2 M14x1.5 ports Bearings: Dual ceramic ball bearings Compressor air Intake diameter: Straight compressor housing – 63mm (2,5″) Compressor housing with 90° elbow – 76mm (3″) Compressor air Outlet diameter: 51mm (2″) Flange: 3″ V-band clamp Exhaust connection: 3″ V-band clamp Ported shroud compressor housing AN4 oil inlet with integrated oil restrictor Compressor side Compressor wheel: 9+0 blades machined from the solid billet Inducer: 57mm Exducer: 71mm Turbine side Housing: 8cm2 / AR: 0.61 Stainless steel Turbine wheel: 9 blades Inducer: 60mm Exducer: 55mm
