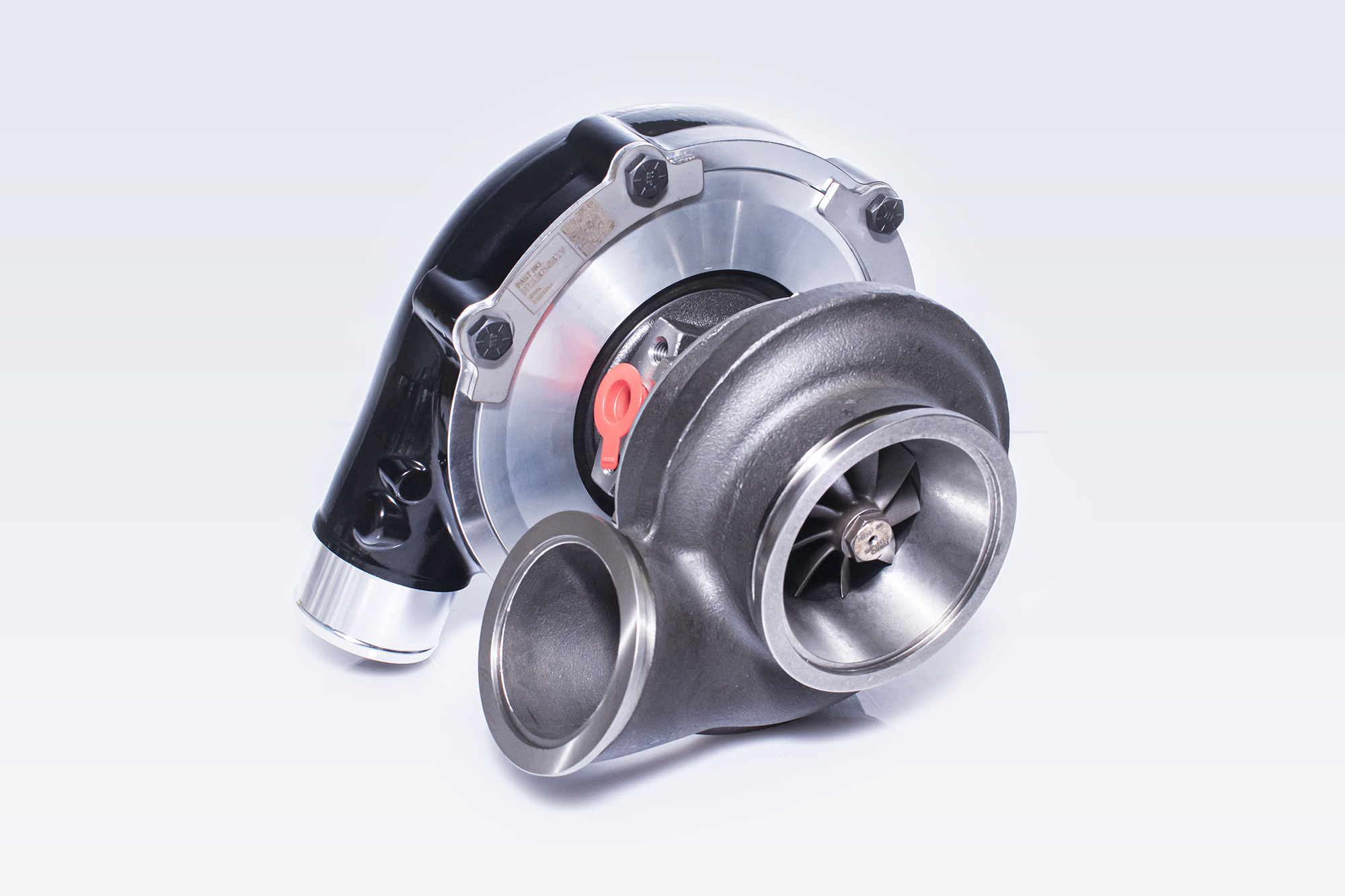

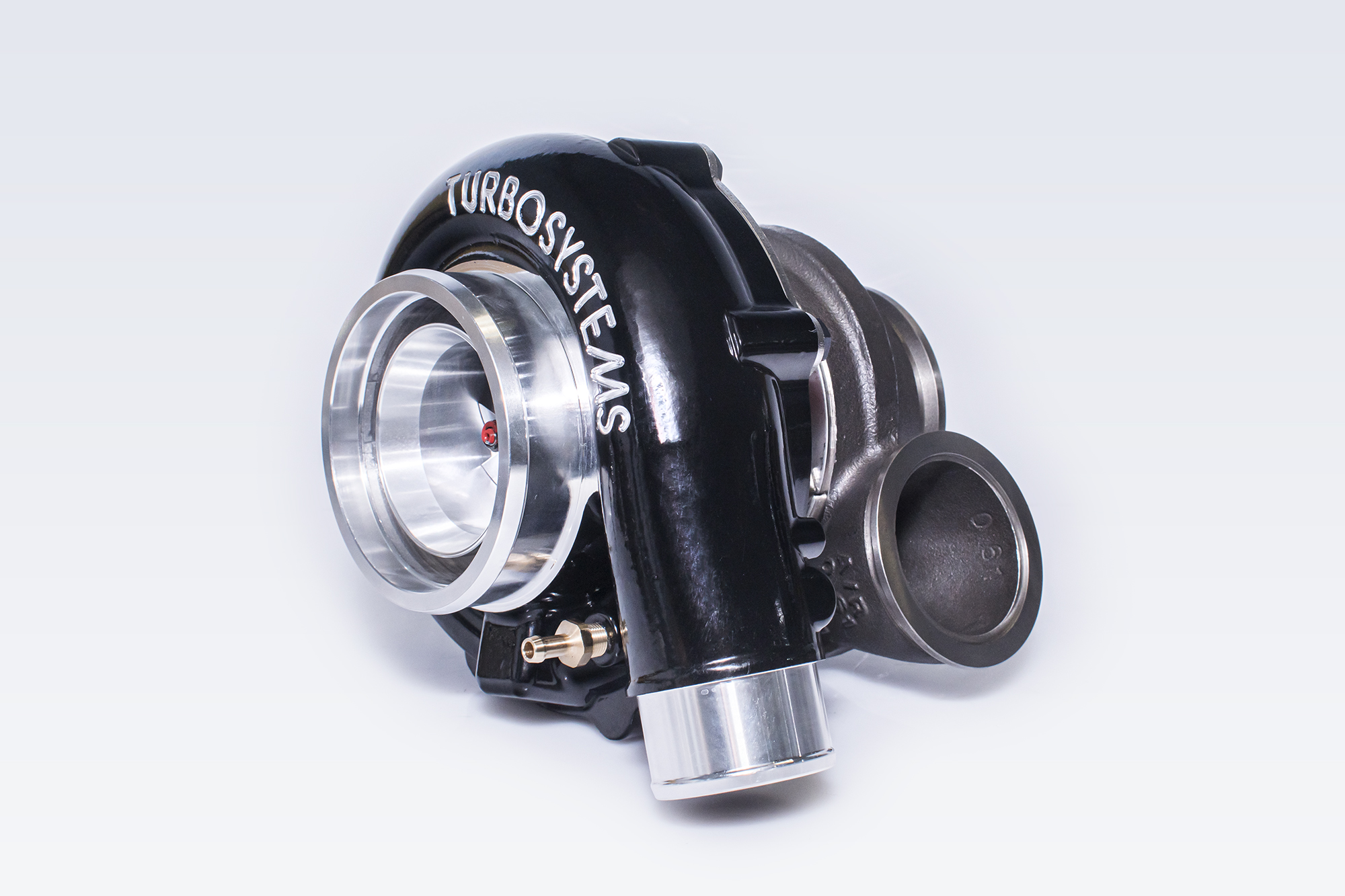

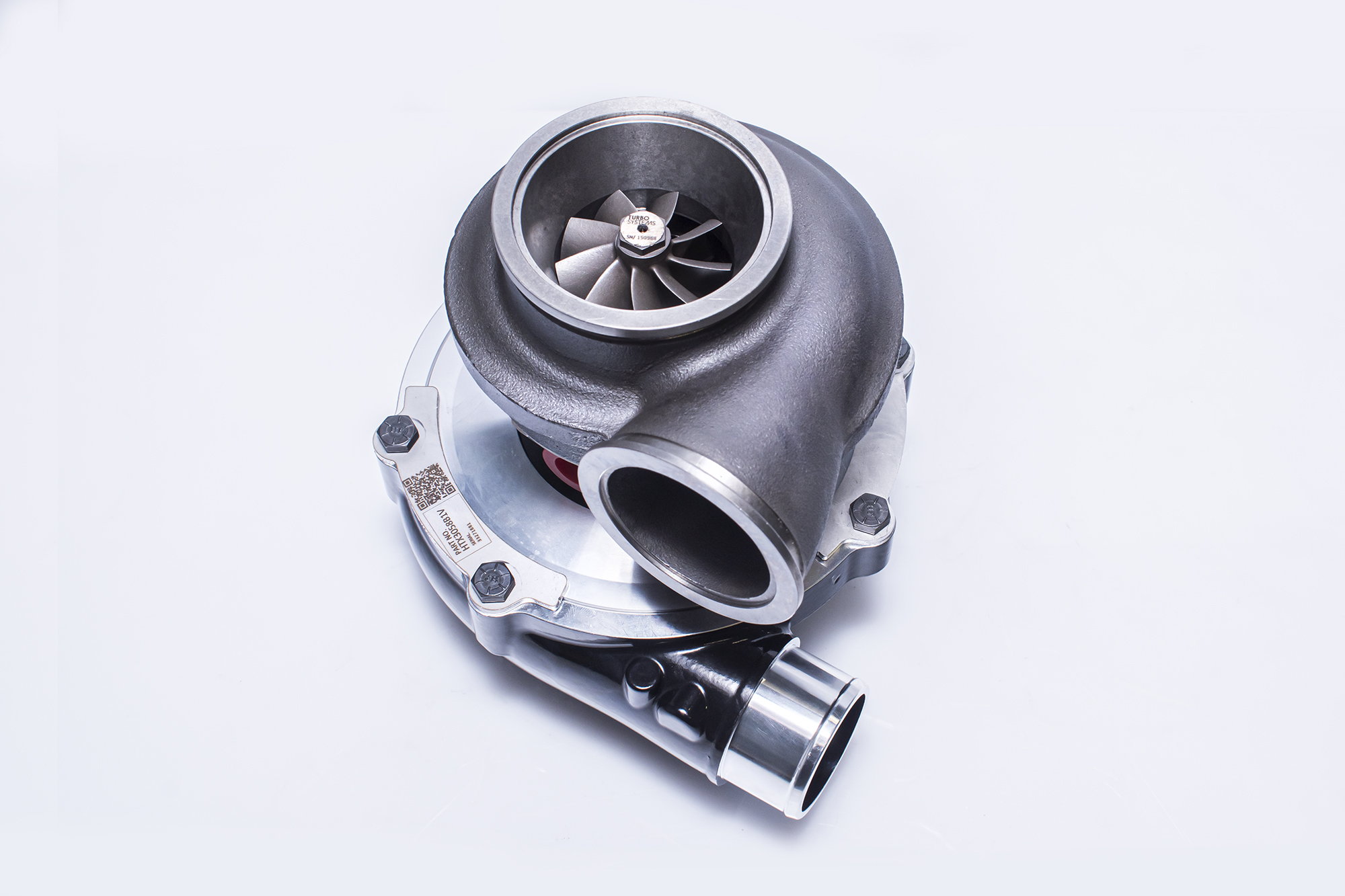

HTX3058B1V universal turbocharger 450-650 HP

Power range: 450-650 HP Core: dual ceramic ball bearing High performance turbocharger designed for heavy loads and high temperature. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use. V-band sets included. Basic information Cooling: Water cooled bearing housing with 2 M14x1.5 ports Bearings: Dual ceramic ball bearings Compressor air Intake diameter: 101mm (4″) Compressor air Outlet diameter: 51mm (2″) Flange: 2.5″ V-band clamp Exhaust connection: 3″ V-band clamp Ported shroud compressor housing AN4 oil inlet with integrated oil restrictor Compressor side Compressor wheel: 9+0 blades machined from the solid billet Inducer: 58mm Exducer: 72mm Turbine side Housing: 8cm2 / AR: 0.63 Stainless steel Turbine wheel: 9 blades Inducer: 60mm Exducer: 55mm
