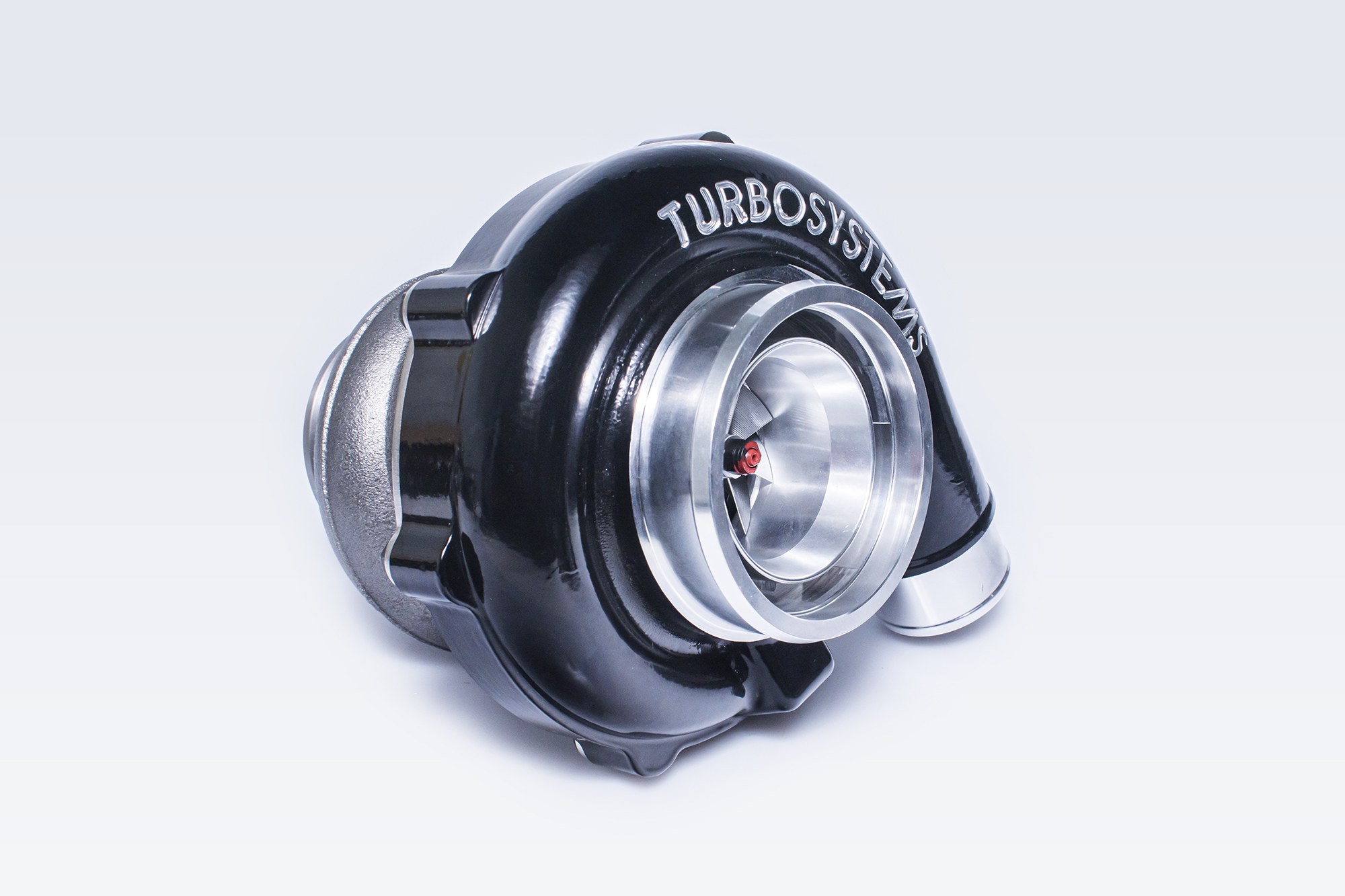

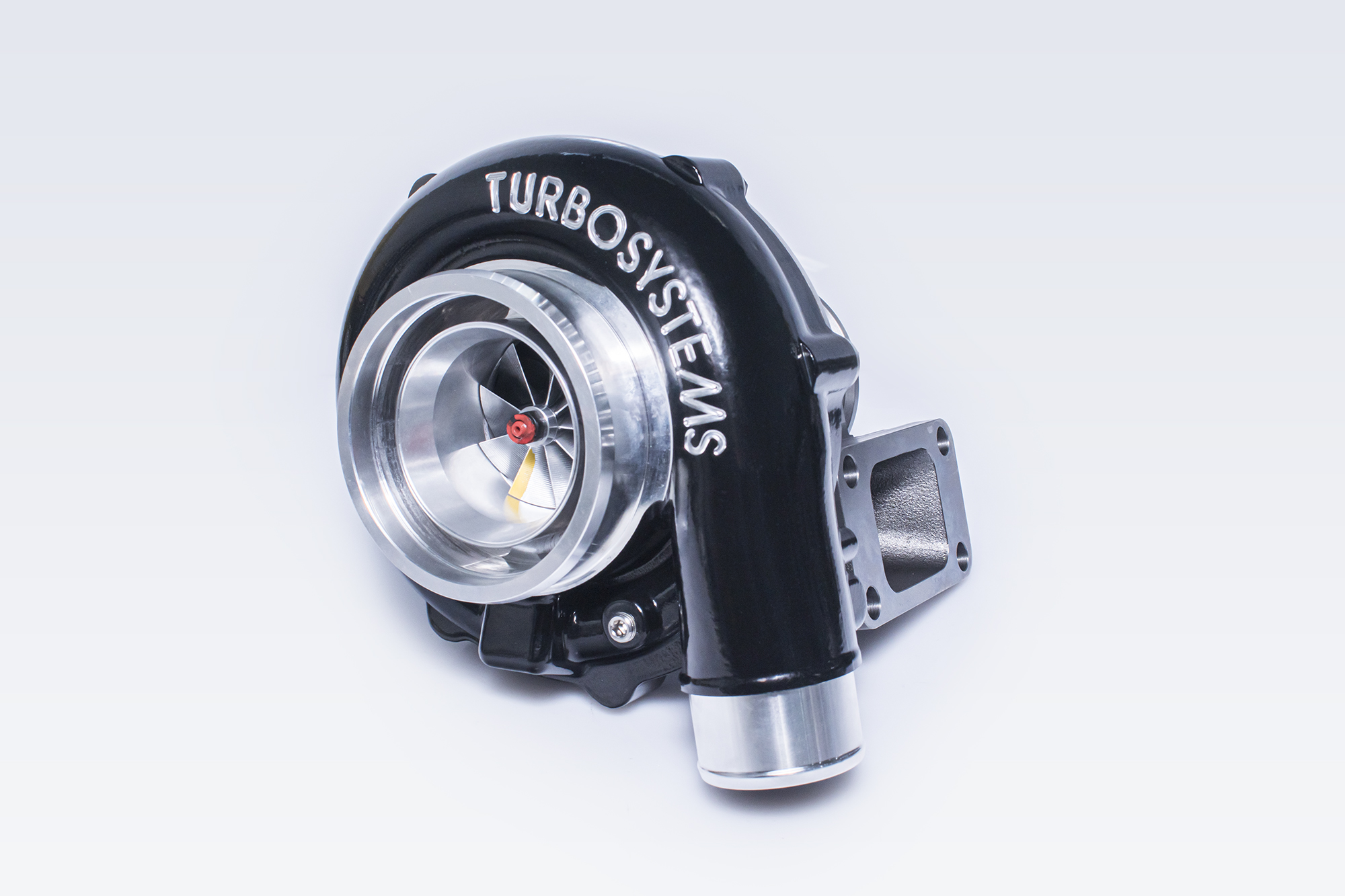

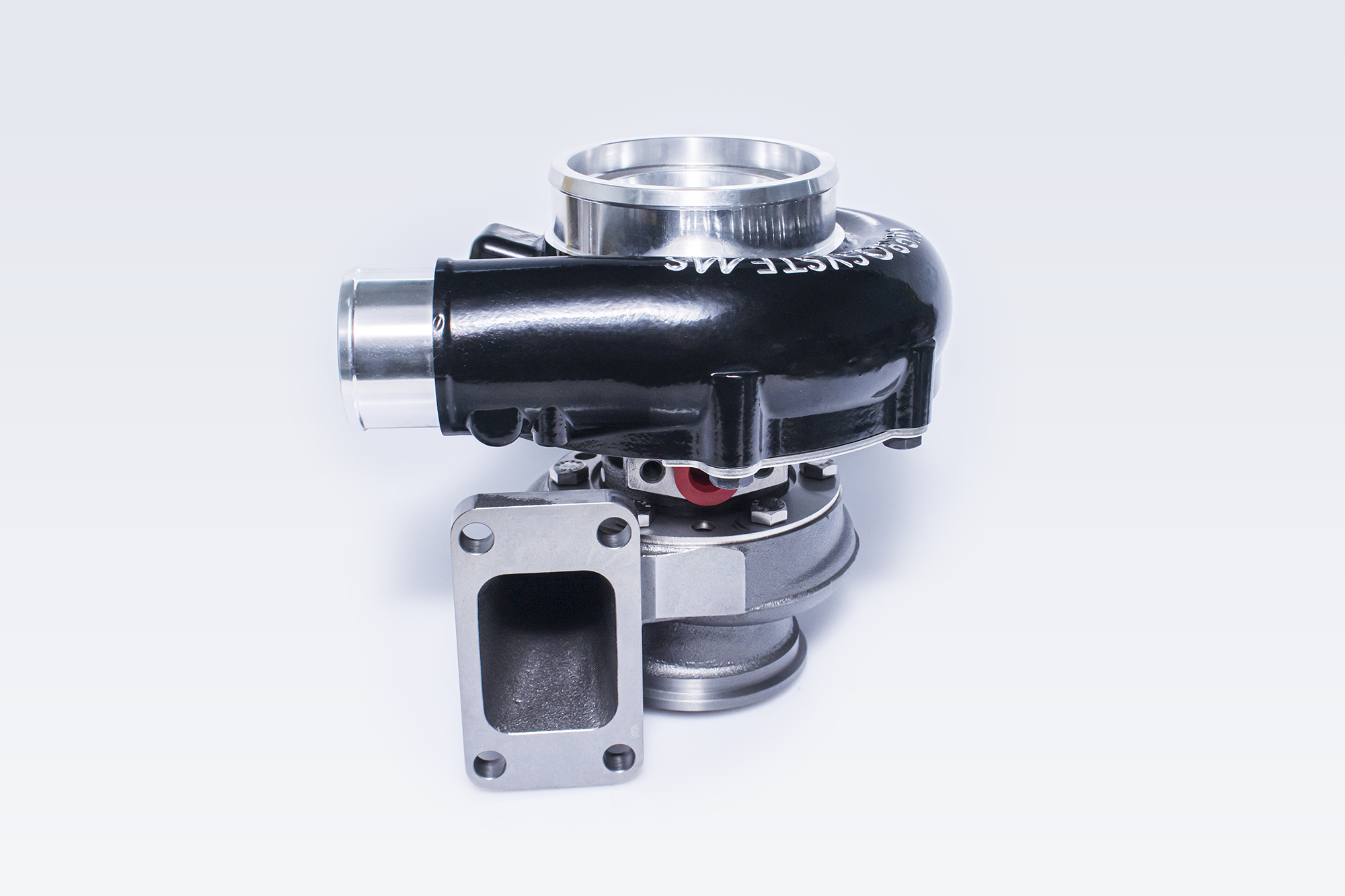

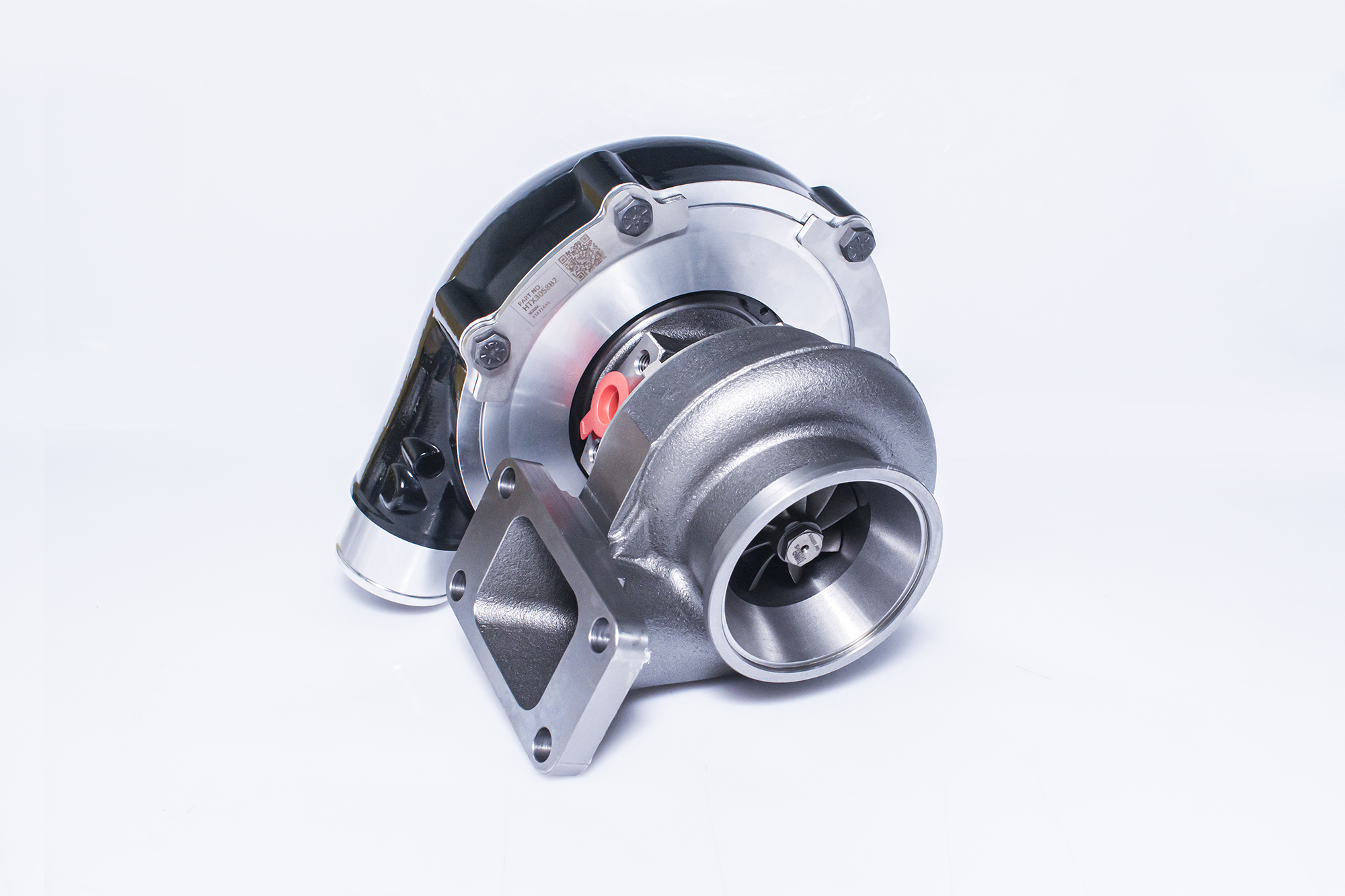

HTX3058B2 universal turbocharger 450-650 HP
12 995 SEK
TURBOSYSTEMS
- Betala i din egen takt med Klarna
- Frågor eller fundering? Maila eller ring oss
Beskrivning
Art.nr: HTX3058B2
Cooling: Water cooled bearing housing with 2 M14x1.5 ports
Bearings: Dual ceramic ball bearings
Compressor air Intake diameter: 101mm (4″)
Compressor air Outlet diameter: 51mm (2″)
Flange: T3
Exhaust connection: 3″ V-band clamp
Ported shroud compressor housing
AN4 oil inlet with integrated oil restrictor
Compressor side
Compressor wheel: 9+0 blades machined from the solid billet
Inducer: 58mm
Exducer: 72mm
Turbine side
Housing: 8cm2 / AR: 0.61 Stainless steel
Turbine wheel: 9 blades
Inducer: 60mm
Exducer: 55mm
