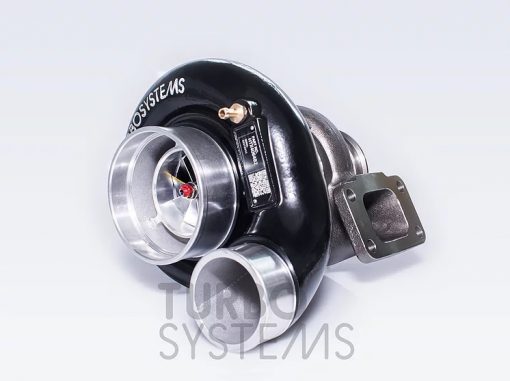

HTX4064B2 universal turbocharger 500-750 WHP

High performance turbocharger designed for heavy loads and high temperature. Two compressor side air outlet choices – 90° (as shown in pictures) and straight for easier connection. Stainless steel housing, dual ceramic ballbearings and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use. Compressor wheel: 10+0 blades machined from the solid aluminium Inducer: 64mm, Exducer: 79mm + extended tip Intake: 100mm Air outlet: 63mm Housing: 14cm2 / AR: 0.82 Turbine wheel: 10 blades Inducer: 76mm Exducer: 64mm Flange: T3 single scroll Exhaust connection: 3″ V-band clamp
