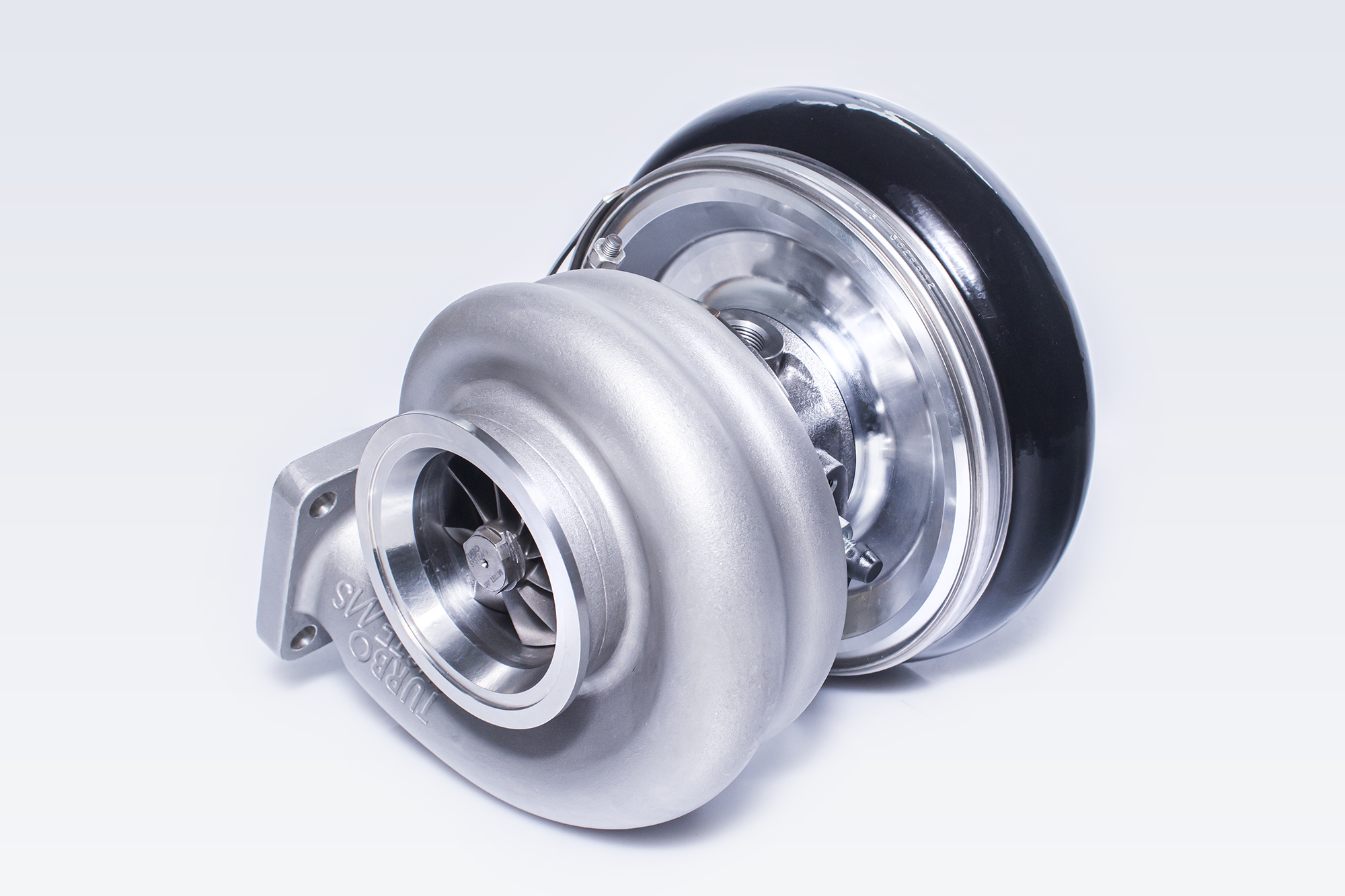

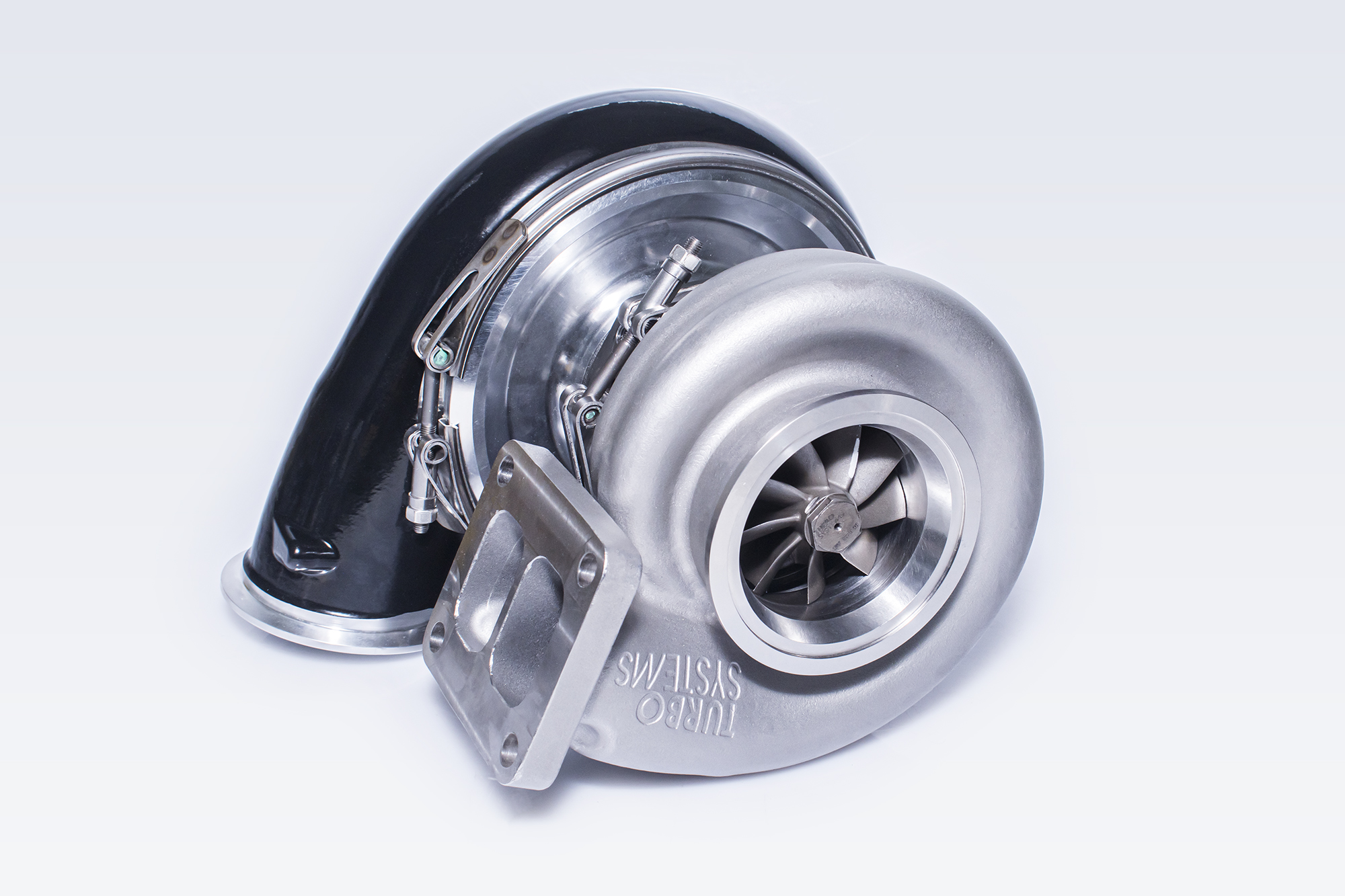

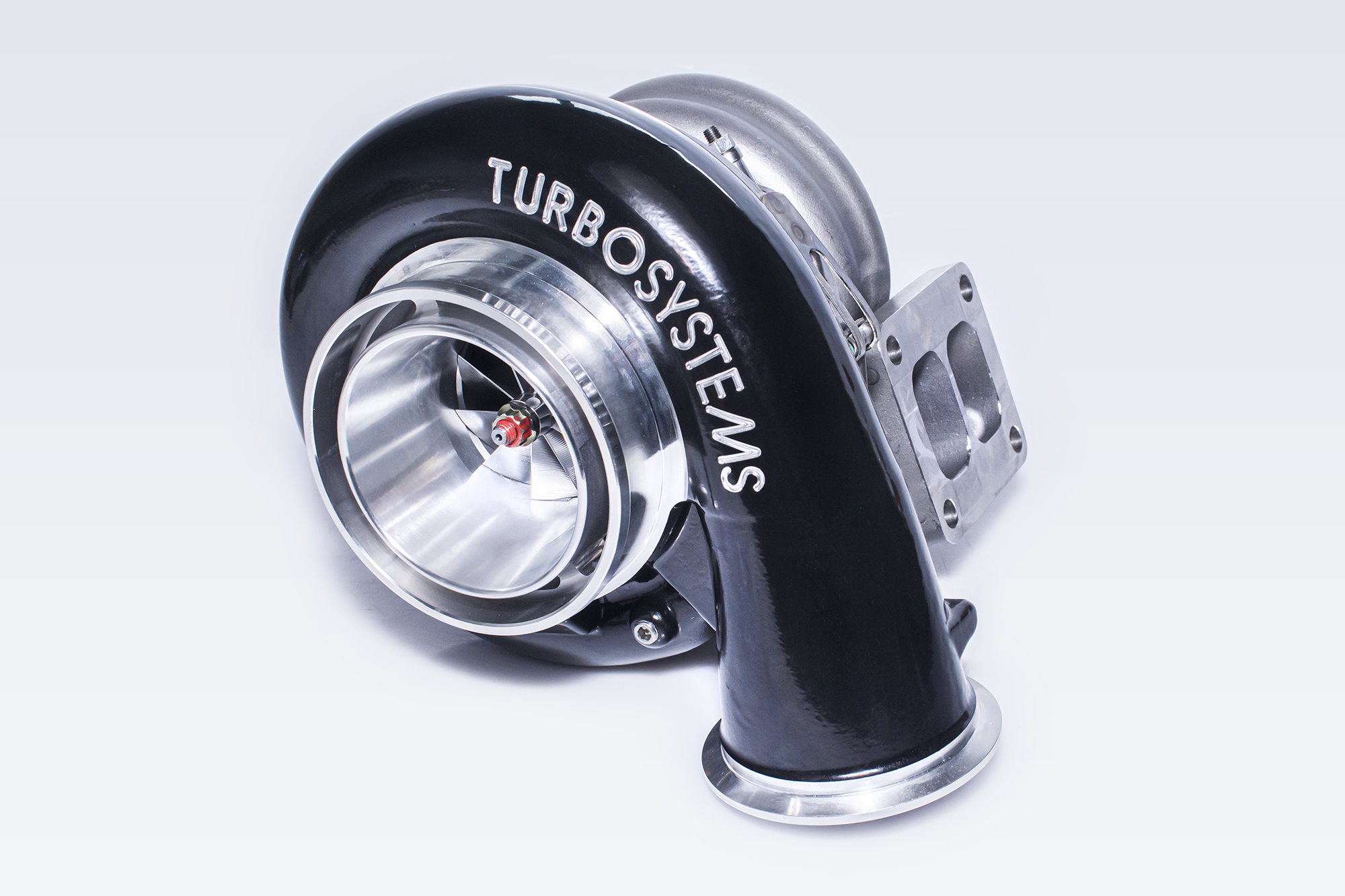

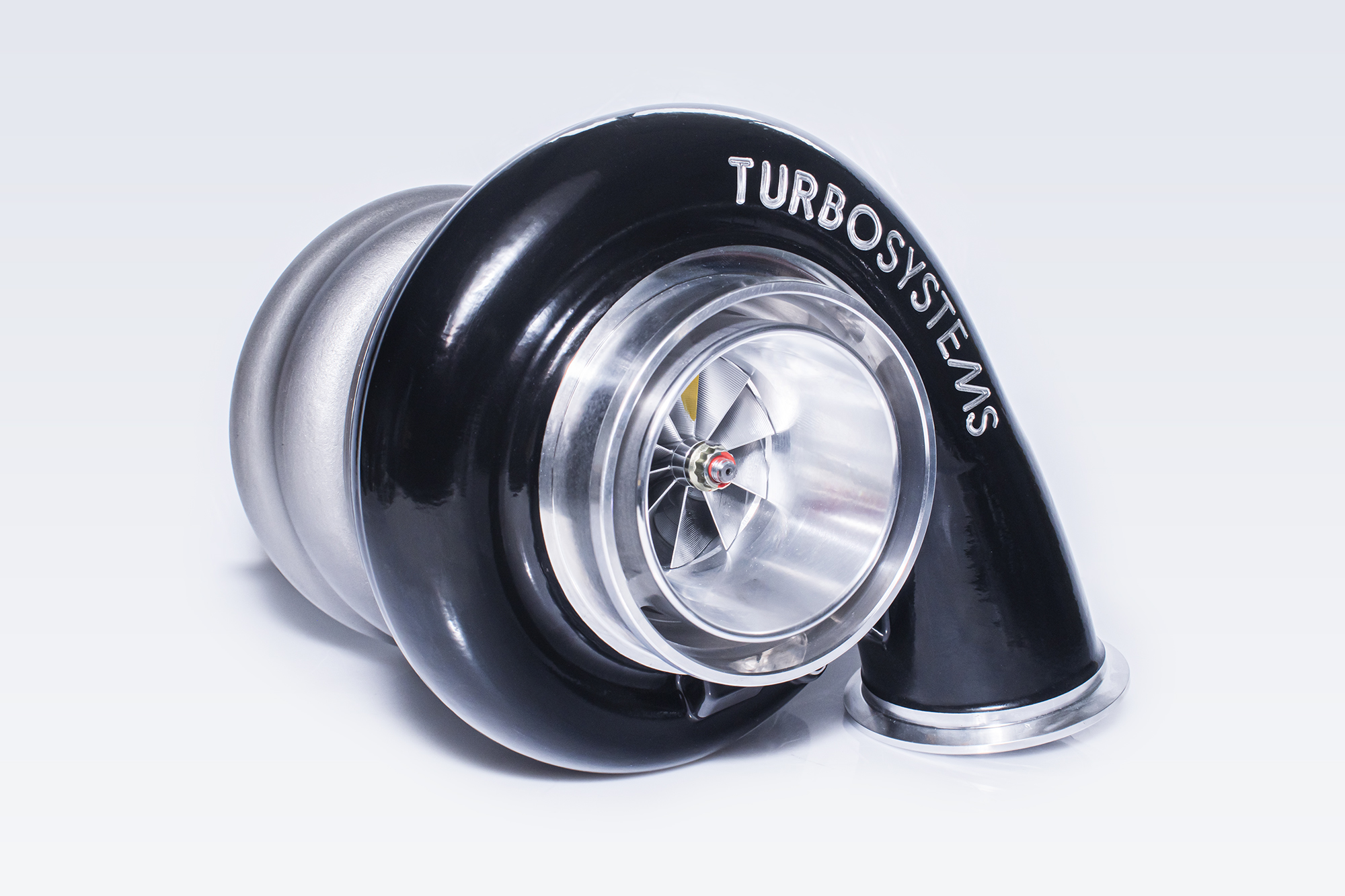

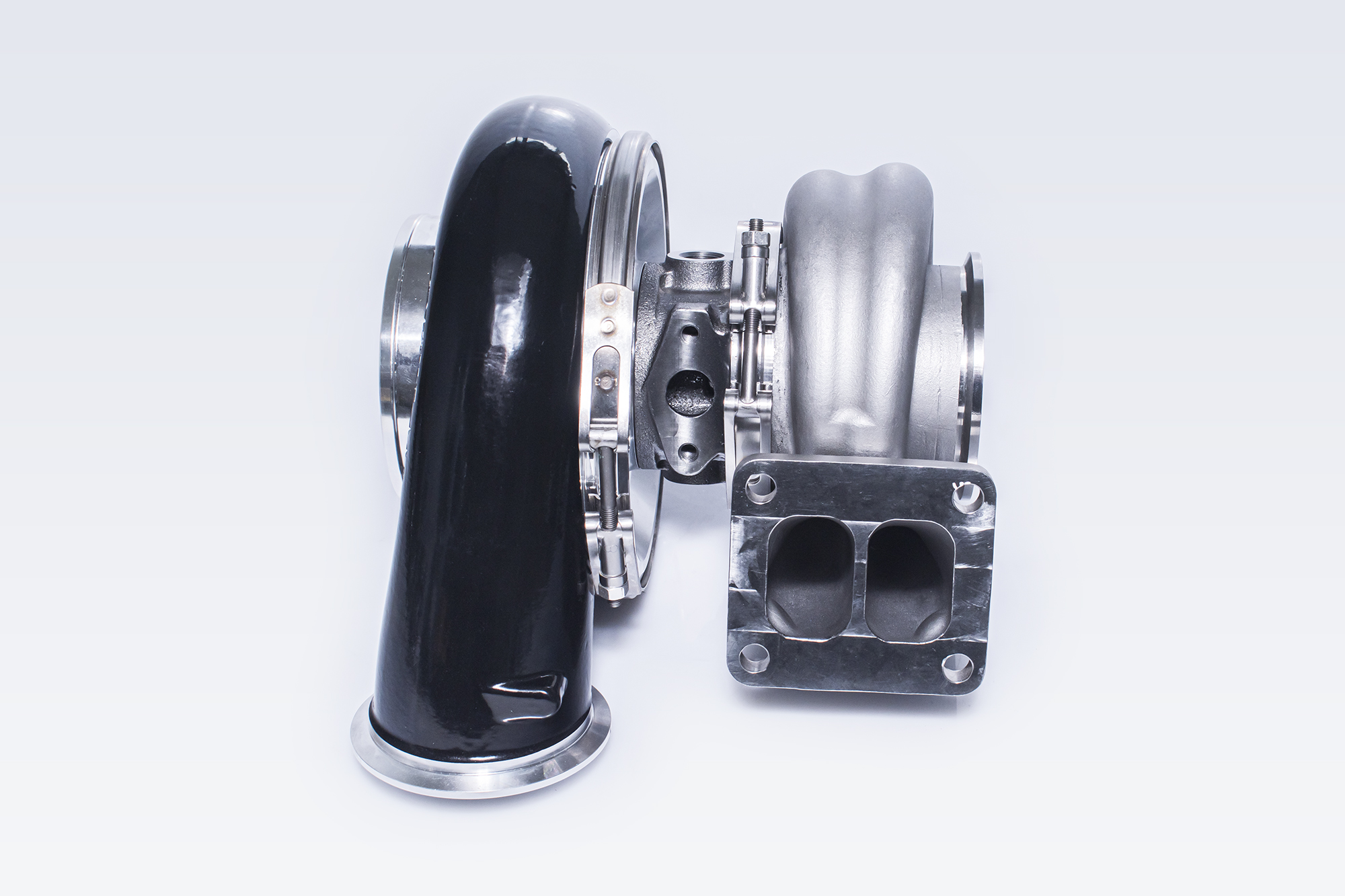

HTX5574B1 universal turbocharger 850 – 1100 WHP
20 995 SEK
TURBOSYSTEMS
- Betala i din egen takt med Klarna
- Frågor eller fundering? Maila eller ring oss
Beskrivning
Art.nr: HTX5574B1
Power range: 850 – 1100 HP
Core: dual ceramic ball bearing
High performance turbocharger designed for heavy loads and high temperature. Stainless steel housing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.
Compressor side:
Compressor wheel: 10+0 blades reinforced billet aluminium;
Inducer: 74mm, Exducer: 91mm;
Intake: 129mm (5″);
Air outlet: 102mm (4″);
Core:
Cooling: Water cooled bearing housing with 2 M16x1.5 ports;
Bearings: Dual ceramic ball bearings;
Turbine side:
Housing: twin scroll, AR: 1.45 / 27CM;
Turbine wheel: 9 blades;
Inducer: 82mm;
Exducer: 75mm;
Flange: T4 twin scroll;
Exhaust connection: 4″ V-band clamp;
