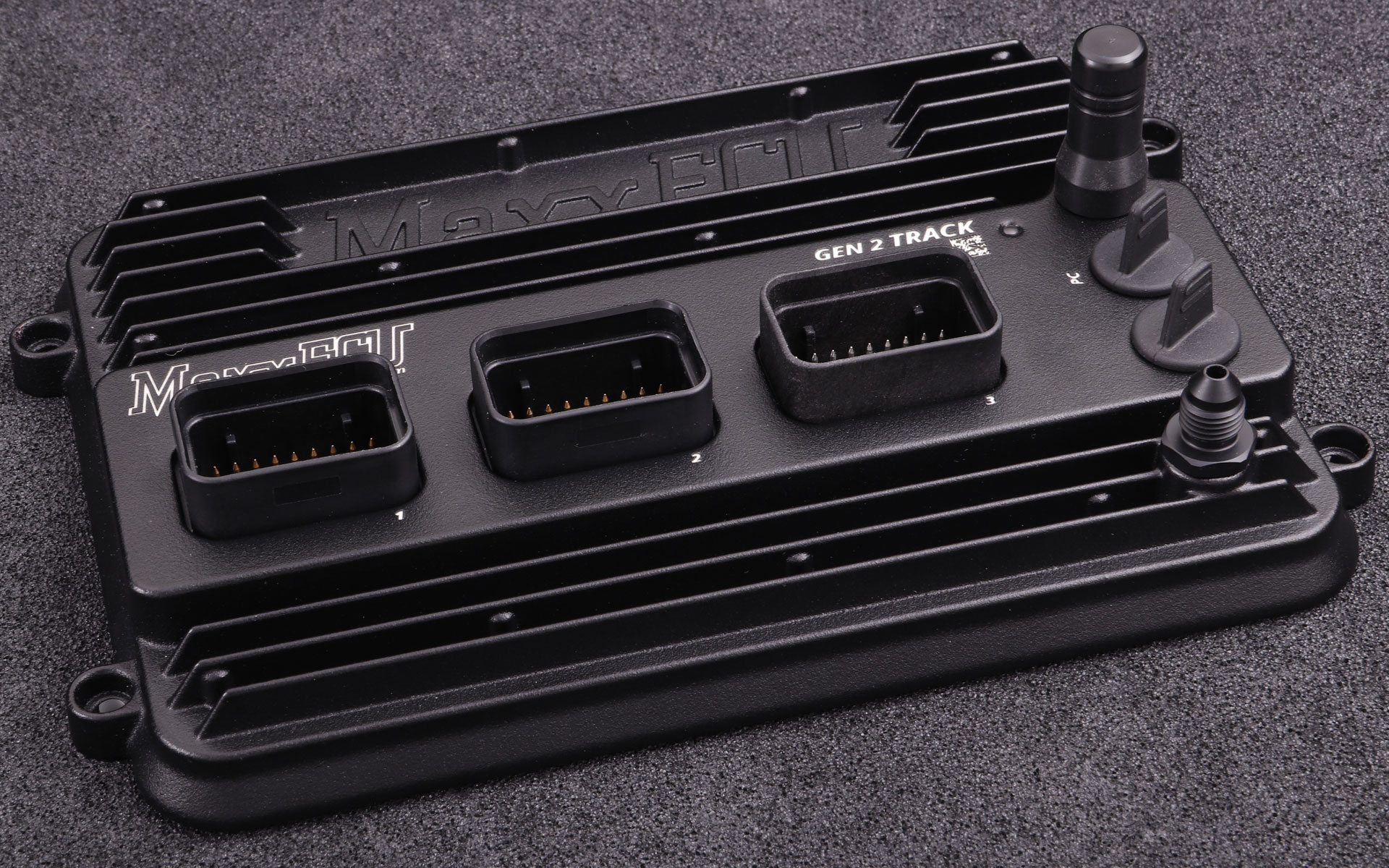

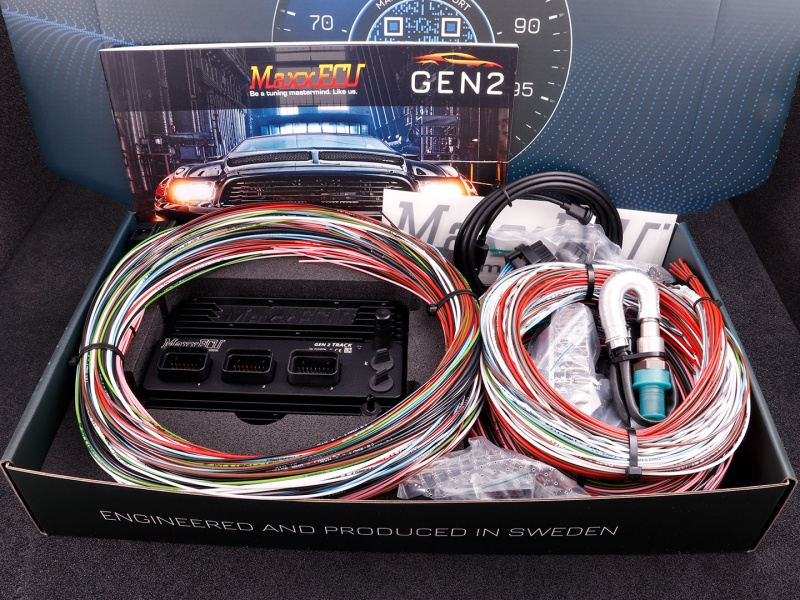

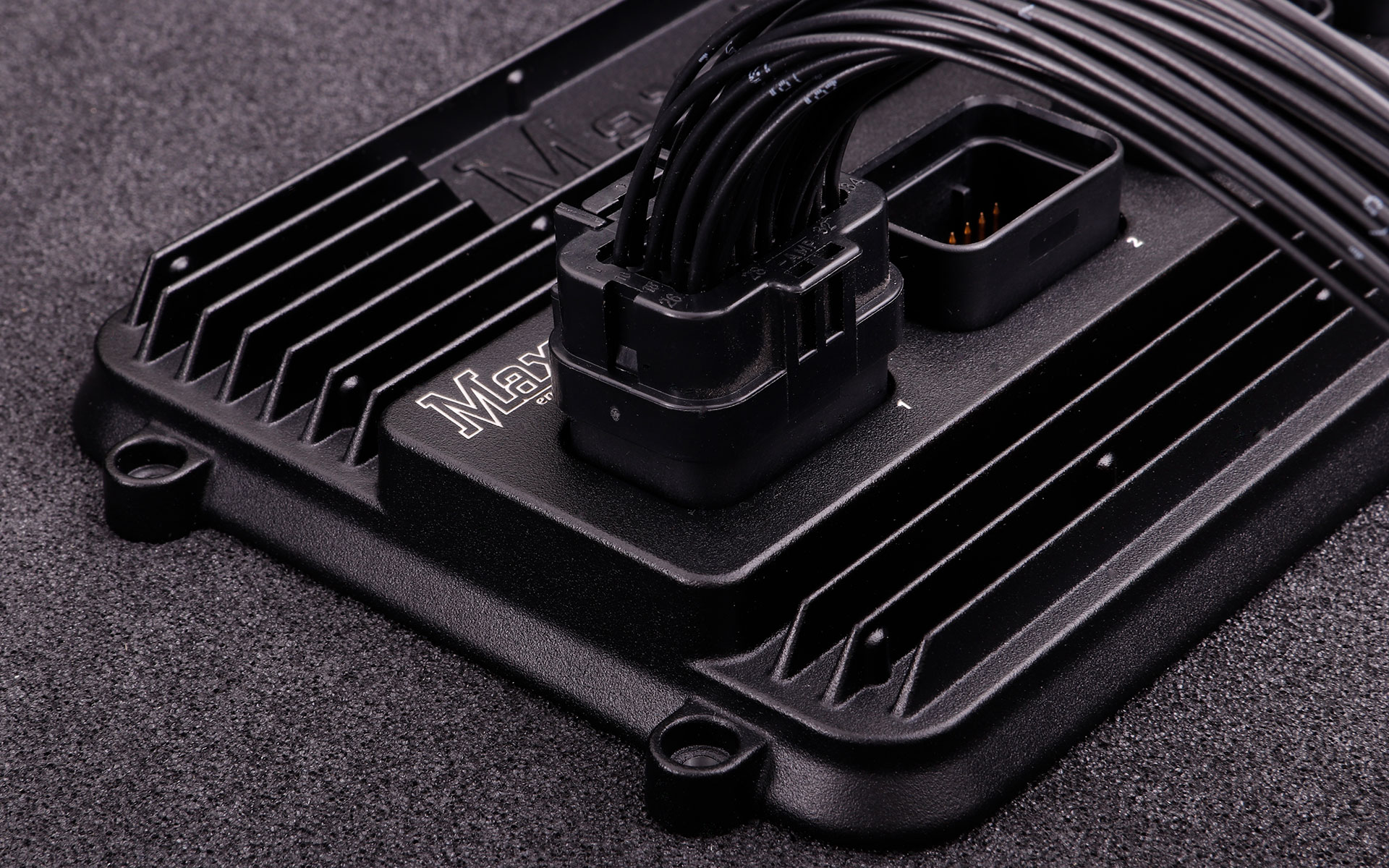

MaxxECU GEN2 TRACK, med en LSU 5.2, Flying Lead Kitt

Target Engines of MaxxECU GEN2 TRACK - All 1-12 cylinder engines (2/4-stroke) - Up to 8 cylinders fully sequentially - Up to 12 cylinders in wasted spark - MaxxECU GEN2 TRACK inputs - 6 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups. - 16 Analog inputs (selectable pullups) - Dual wideband lambda (LSU 5.2/4.9/4.2) - Dual knock sensor input MaxxECU GEN2 TRACK outputs - 8 injectors (Peak-hold high/low impedance) / GP outputs - 8 IGN / GP outputs (selectable +5V/12V/GND) - 8 GP Outputs (GND) - 4 GP Outputs (+12V) - 4 GP Outputs (H-bridge/E-Throttle) - MaxxECU GEN2 RACE technical - Superseal 1.0 connectors - 550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable, with BSP 1/8 thread - 3-axis accelerometer (up to 8 G) - ARM dual core CPU - 6-22V operating voltage - 8GB internal log capacity, 1000Hz, all 2000+ channels - USB-C 480mbit/s (MTune PC communication) - USB-C 12mbit/s (tablet charging) - WIFI communication with MTune - Bluetooth connectivity with MDash - Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control - Resolution on ignition: 0.1 degrees - Resolution on injectors: 0.001 ms - Performs fuel and ignition calculations 3,000 times per second. - 2000Hz sampling rate on analog/digital inputs - Weight: 545g - 206x138x35mm including protruding connectors - Black powder-coated aluminium case - All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits. Detta kitt inkluderar Lambda samt Flying Lead härvor. Välj antal lambda i rull listan.
