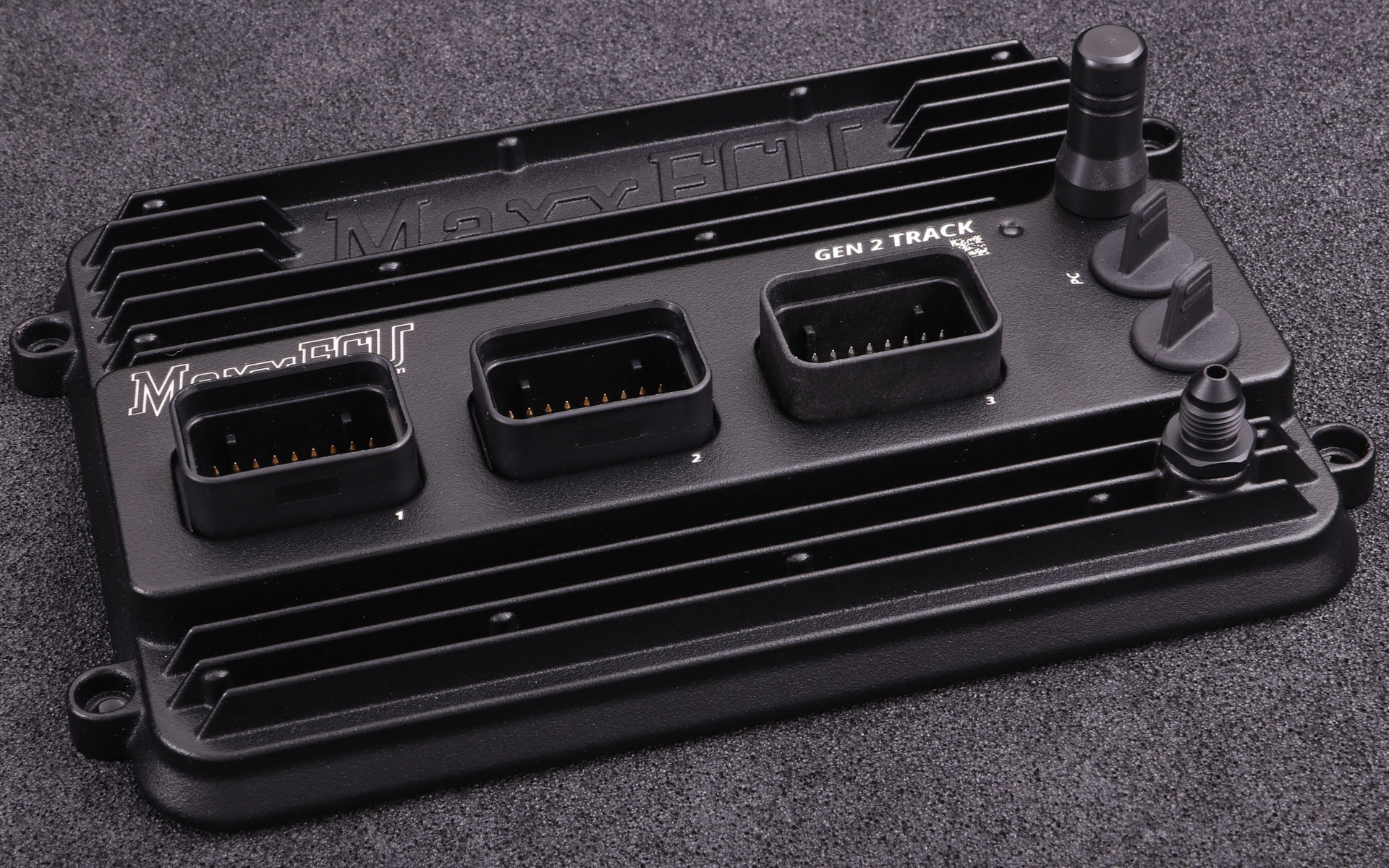

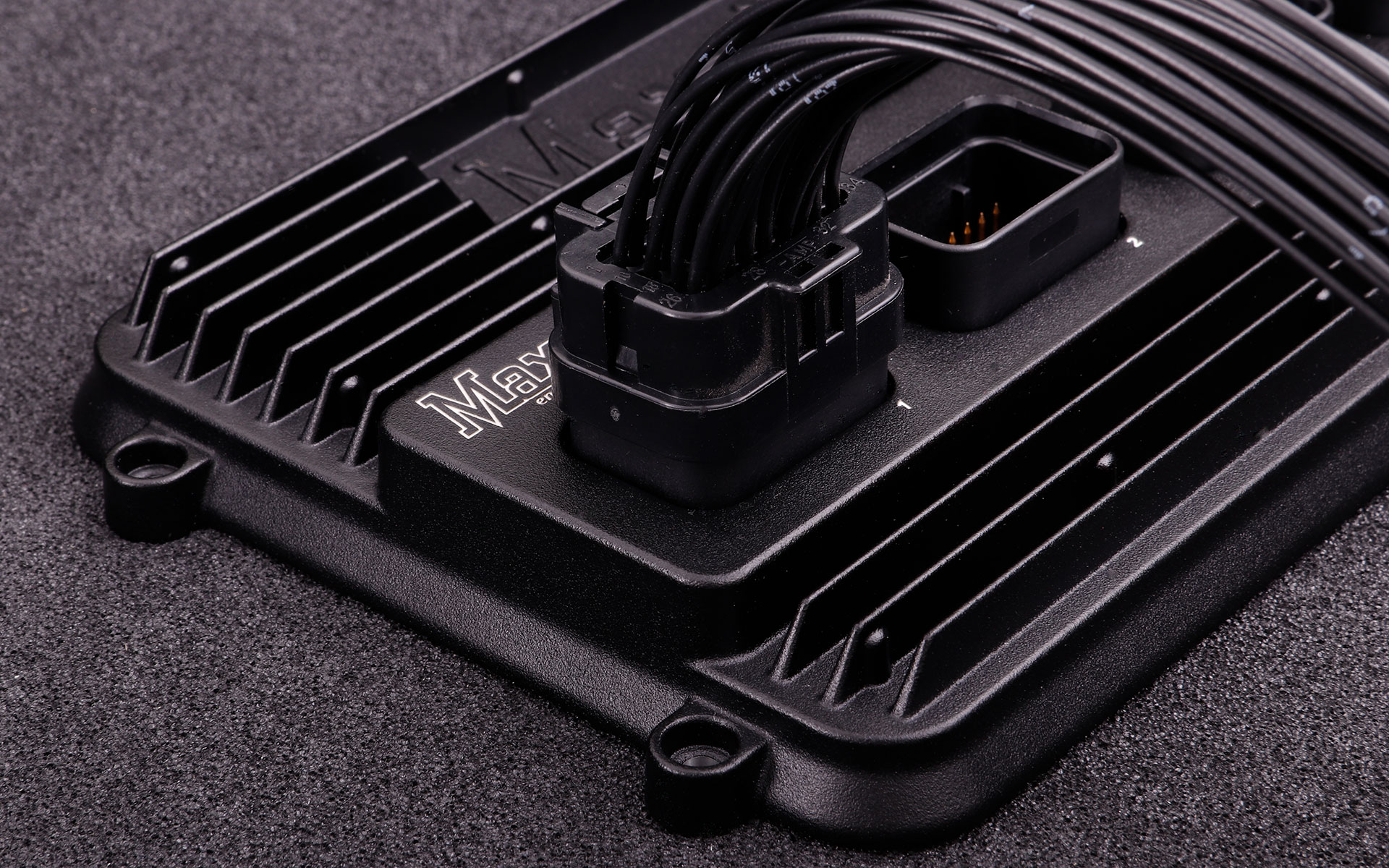

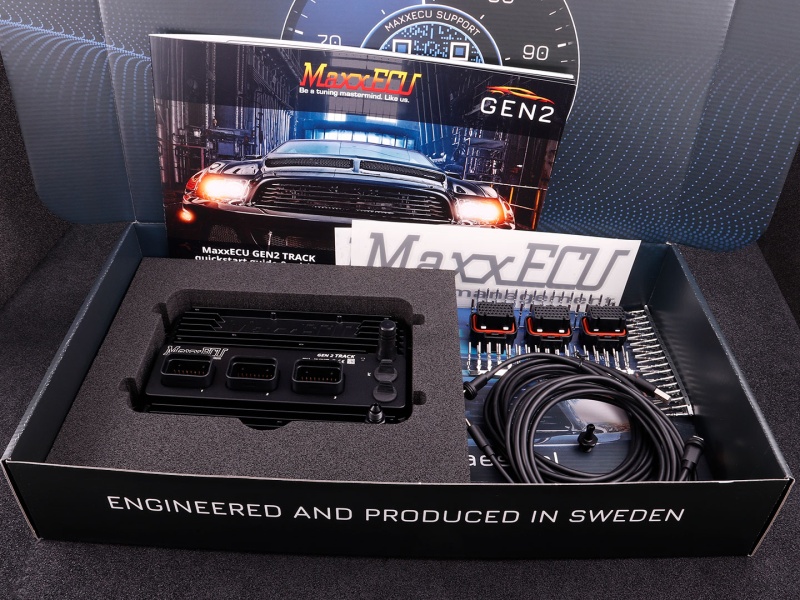

MaxxECU GEN2 TRACK, with connector kit

Target Engines of MaxxECU GEN2 TRACK All 1-12 cylinder engines (2/4-stroke) Up to 8 cylinders fully sequentially Up to 12 cylinders in wasted spark MaxxECU GEN2 TRACK inputs 6 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups. 16 Analog inputs (selectable pullups) Dual wideband lambda (LSU 5.2/4.9/4.2) Dual knock sensor input MaxxECU GEN2 TRACK outputs 8 injectors (Peak-hold high/low impedance) / GP outputs 8 IGN / GP outputs (selectable +5V/12V/GND) 8 GP Outputs (GND) 4 GP Outputs (+12V) 4 GP Outputs (H-bridge/E-Throttle) MaxxECU GEN2 RACE technical Superseal 1.0 connectors 550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable, with BSP 1/8 thread 3-axis accelerometer (up to 8 G) ARM dual core CPU 6-22V operating voltage 8GB internal log capacity, 1000Hz, all 2000+ channels USB-C 480mbit/s (MTune PC communication) USB-C 12mbit/s (tablet charging) WIFI communication with MTune Bluetooth connectivity with MDash Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control Resolution on ignition: 0.1 degrees Resolution on injectors: 0.001 ms Performs fuel and ignition calculations 3,000 times per second. 2000Hz sampling rate on analog/digital inputs Weight: 545g 206x138x35mm including protruding connectors Black powder-coated aluminium case All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits. Detta kitt innehåller endast Lösa kontakter och stift med Ecu.
